Overmolding for Custom Silicone, PVC & Rubber Products
Haotian provides overmolding for custom silicone, PVC and rubber projects where technically suitable. The proposed component, interface design, coverage and assembly requirements guide the manufacturing approach.
Overmolding forms a molded feature around or onto another component. Its suitability depends on the specific design and material combination, including how the molded feature will be retained and how the finished part will fit into the intended assembly.
Review the Component and Material Requirements
An overmolding project starts with the component that will receive the molded feature. Its material, geometry and surface condition provide the basis for discussing whether the proposed construction is suitable.

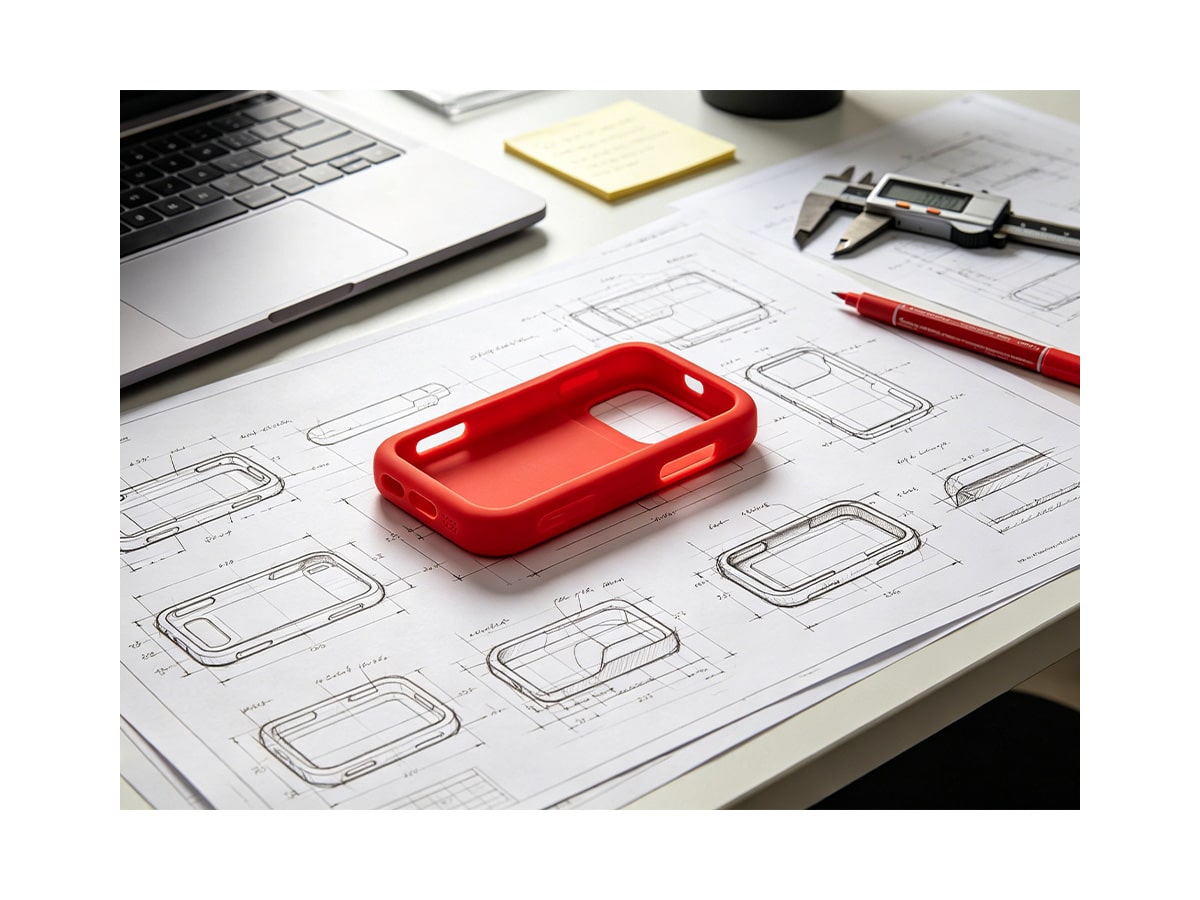

A drawing defines the intended shape, while material information helps establish the conditions that need to be considered during manufacturing. Both are useful when evaluating an existing component or developing a new one.
Component Details
Relevant information includes the component’s dimensions, contact surfaces and features that must remain accessible. Drawings, models and reference samples can also clarify how it connects with surrounding parts.
Material Information
The component material and any existing coating or surface treatment should be identified. Silicone, PVC and rubber should be considered against the requirements of the particular project; suitability cannot be established from a general material name alone.
Intended Use
The product’s purpose and stated use conditions help define the requirements for the finished construction. These may include handling, contact with other parts or a particular assembly arrangement.
Define the Interface and Retention Requirements
The interface is the area where the molded feature meets the original component. Its design needs to account for how the two parts contact one another and how the molded feature remains in its intended position.
Contact Geometry
The contact area, transitions and available space influence the proposed construction. A clear interface drawing helps distinguish the surfaces involved in retention from those needed for access or later assembly.
Retention Requirements
The design should identify what the molded feature needs to resist or maintain during the intended use. Holding its position during assembly and remaining attached under a specified load are different requirements and need appropriate acceptance criteria.
Bonding and Structural Retention
Retention may involve adhesion between materials, mechanical retention through the component geometry, or a combination of both. The suitable approach depends on the material pairing and structure.
A bonded interface should not be assumed for every combination. Any required attachment performance needs to be defined for the proposed component and evaluated using an agreed method.
Define Coverage and Exposed Areas
Coverage defines where the molded material belongs and where the original component must remain exposed. Clear boundaries help communicate the intended appearance and preserve the features needed for the finished product.
Coverage Boundaries
The design should mark the beginning and end of each covered area. It should also show the intended profile and thickness of the molded feature, including transitions between covered and exposed surfaces.
Openings and Access
Holes, connection points, access openings and other functional features may need to remain clear. These locations should be identified on the drawing so the coverage requirements can be considered alongside the component’s use.
Adjacent Surfaces
The relationship between the molded feature and neighboring surfaces matters where parts meet or move together. The proposed geometry should account for clearance, contact and the intended position of the finished component.
Color, texture and surface-detail requirements can be defined within the coverage plan. Their feasibility remains connected to the selected material and manufacturing approach.
Plan Tooling and Assembly Around the Design
The tooling plan connects the proposed overmolded structure with manufacturing requirements. It needs to account for component positioning, the areas receiving molded material and how the finished part can be removed from the mold.
Component Positioning
The component must be located in relation to the intended molded feature. Its shape and locating surfaces are relevant to the tooling discussion, particularly where coverage must align with an opening, edge or assembly interface.

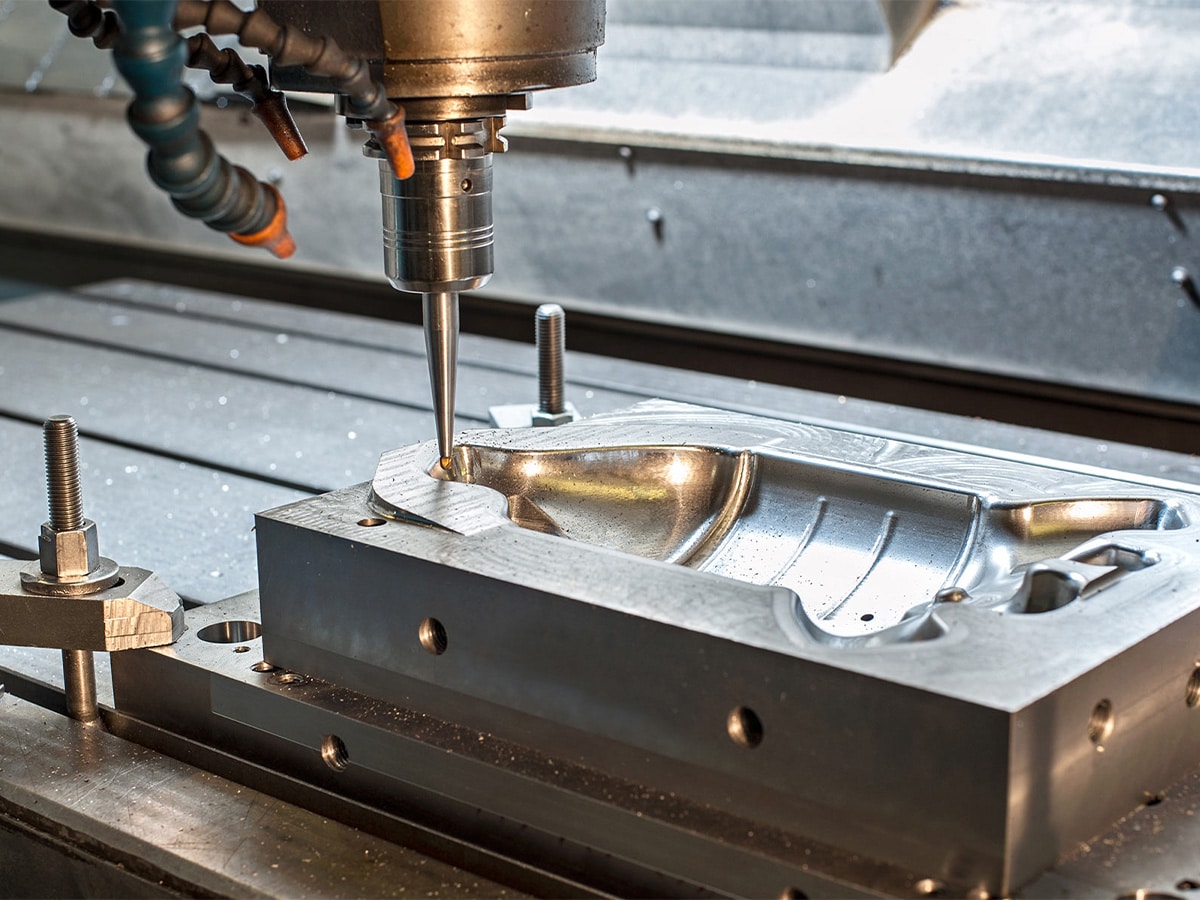

Production Tooling
Haotian has its own mold workshop supporting mold making, modifications and maintenance. This allows product-design changes and production-tooling requirements to be discussed within the same development project.
Our in-house mold making capability supports manufacturing preparation and tooling adjustments when the agreed design changes.

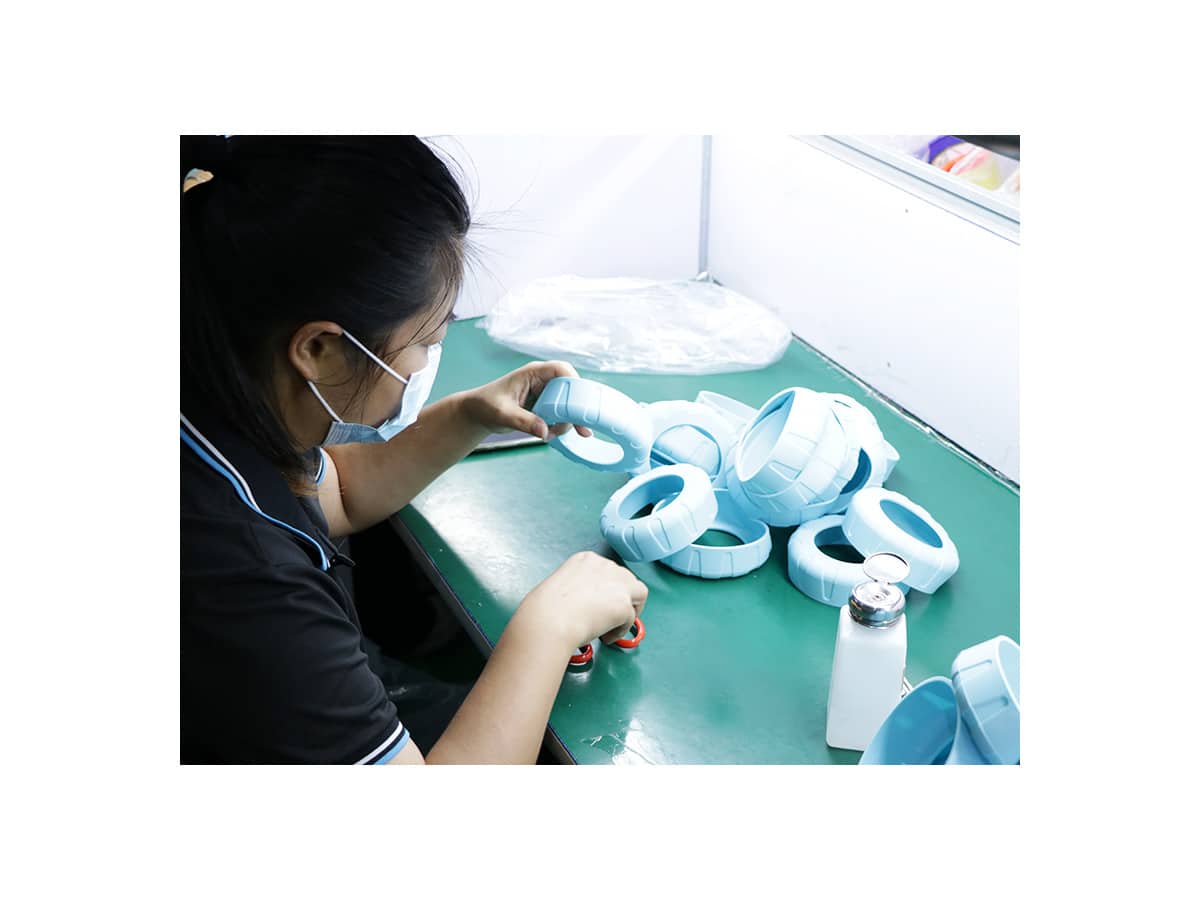

Assembly After Molding
The overmolded part may still need to connect with other components or undergo further finishing. These requirements should be considered when defining the manufacturing sequence and the condition in which the part is supplied.
Haotian can coordinate molded products with agreed decoration, assembly and packaging requirements.
Review Samples Against the Agreed Requirements
Sample review provides an opportunity to compare the proposed construction with the agreed design. The review should use clearly identified requirements so that feedback can lead to specific decisions.
Relevant review areas may include:
- Coverage and appearance: the location of molded areas, edge boundaries, color and surface details.
- Component interfaces: the position of exposed features, openings and connection areas.
- Assembly fit: the relationship between the overmolded part and its associated components.
- Retention requirements: any specified attachment criteria and the agreed method for assessing them.
Where a difference is identified, the feedback should state the affected feature and the required change. This helps distinguish a drawing revision from a tooling adjustment or a change to the proposed construction.
Inspection methods, test conditions and records need to reflect the checks actually agreed and used for the project. Further information belongs within the relevant project quality control scope.
Overmolding FAQs
What if the component material has not yet been specified?
The geometry and intended construction can still provide a starting point for discussion. However, the component material needs to be identified before compatibility with the proposed overmolding material and manufacturing conditions can be confirmed. Any undecided material choices should be clearly marked in the project information.
Can an existing component be considered for overmolding?
An existing component can be submitted for evaluation. Its material, surface condition, geometry and available locating features are relevant to feasibility. The review may identify a need to revise the component or the proposed molded feature before proceeding with tooling.
Can printed or decorated areas remain exposed?
The intended exposed areas can be defined in the coverage drawing. Existing graphics, coatings or finishes also need to be identified so their relationship with the proposed manufacturing conditions can be considered. Preserving a decorated area requires more than marking it outside the coverage boundary.
Does overmolding replace every assembly step?
The remaining assembly requirements depend on the finished product. An overmolded component may still need additional parts, decoration or packaging. The project should define what is completed during molding and what remains to be carried out afterward.
